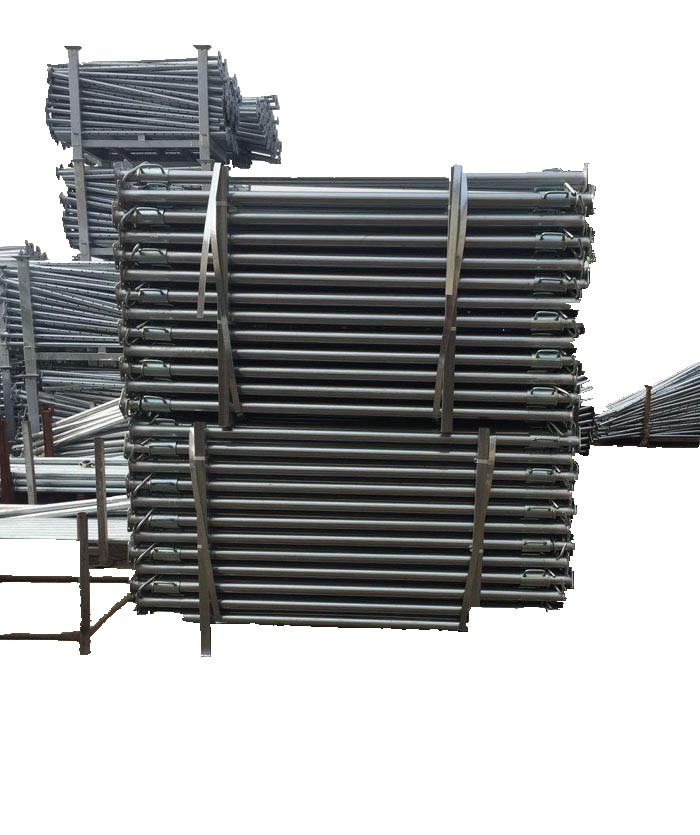

Building Construction Shuttering Jacks Galvanized Steel Acro Props
Steel Prop
1.Length: 2.2-4m 1.7-3.0m etc
2.Type: 60/48mm, 56/48mm, 48/40mm
3.Thickness: 1.6mm-3mm or as required
4.Surface:Power Coated or Pre-Galvanized
Product Description
Steel props are widely used in engineering construction,
such as subway tunnel construction, etc.
1. One piece of scaffold prop include outside tube,inner tube,thread tube,collar nut,tie bolt,top plate and base plate.
2. scaffold prop is easy to erect and dismantle and use less manpower than traditional scaffolds.
3. Since there is no ledgers between metal prop, workers can have large operating space and carry materials smoothly at the
construction site.
4. Scaffold prop is an ideal and cost-effective post for supporting concrete slabs and beams
|
Specifications
|
Adjustable Height
|
Load Capacity
|
Gross Weight
|
Surface
|
|
1
|
1.8-3.2m
|
1.5-2.0Ton/piece
|
9.5kgs/piece
|
Power coated/HDG
|
|
2
|
2.2-3.5m
|
1.5-2.0Ton/piece
|
10.5kgs/piece
|
Power coated/HDG
|
|
3
|
2.2-4m
|
1.5-2.0Ton/piece
|
12.5kgs/piece
|
Power coated/HDG
|
|
4
|
3-5m
|
1.5-2.0Ton/piece
|
20.5kgs/piece
|
Power coated/HDG
|
Size:
Heavy duty prop
MIN |
MAX | Inner tube | Outer tube |
| 1.8m | 3.2m | 48*2.0mm | 60*2.0mm |
| 2.1m | 3.4m | 48*2.0mm | 60*2.0mm |
| 2.2m | 4.0m | 48*2.0mm | 60*2.0mm |
| 2.4m | 3.9m | 48*2.0mm | 60*2.0mm |
| 3.5m | 4.0m | 48*2.0mm | 60*2.0mm |
| 3.0m | 5.0m | 48*2.0mm | 60*2.0mm |
Light duty prop
MIN |
MAX | Inner tube | Outer tube |
| 1.6m | 3.0m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| 1.8m | 3.5m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| 2.0m | 3.5m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm |
Adjustable Height: 1.70-3.00M
|
Outer tube |
Inner tube | Base Plate | Weight | Load Quantity |
|---|---|---|---|---|
| 48x1.8mm | 40x1.8mm | 120x120x4.0mm | 7.75 Kg | 1,750pcs/20GP |
| 48x2.0mm | 40x2.0mm | 120x120x4.0mm | 8.37 Kg | 1,750pcs/20GP |
| 56x1.8mm | 48x1.8mm | 120x120x4.0mm | 9.63 Kg | 1,700pcs/20GP |
| 56x2.0mm | 48x2.0mm | 120x120x4.0mm | 9.98 Kg | 1,700pcs/20GP |
| 60x1.8mm | 48x1.8mm | 120x120x4.0mm | 9.61 Kg | 1,700pcs/20GP |
| 60x2.0mm | 48x2.0mm | 120x120x4.0mm | 10.46 Kg | 1,700pcs/20GP |
| 60x2.5mm | 48x2.5mm | 120x120x5.0mm | 12.73 Kg | 1,700pcs/20GP |
Adjustable Height: 1.95-3.50M
| Outer tube | Inner tube | Base Plate | Weight | Load Quantity |
|---|---|---|---|---|
| 48x1.8mm | 40x1.8mm | 120x120x4.0mm | 8.80 Kg | 1,650pcs/20GP |
| 48x2.0mm | 40x2.0mm | 120x120x4.0mm | 9.52 Kg | 1,650pcs/20GP |
| 56x1.8mm | 48x1.8mm | 120x120x4.0mm | 10.86 Kg | 1,600pcs/20GP |
| 56x2.0mm | 48x2.0mm | 120x120x4.0mm | 11.35 Kg | 1,600pcs/20GP |
| 60x1.8mm | 48x1.8mm | 120x120x4.0mm | 10.89 Kg | 1,600pcs/20GP |
| 60x2.0mm | 48x2.0mm | 120x120x4.0mm | 11.89 Kg | 1,600pcs/20GP |
| 60x2.5mm | 48x2.5mm | 120x120x5.0mm | 14.49 Kg | 1,600pcs/20GP |
Adjustable Height: 2.20-4.00M
| Outer tube | Inner tube | Base Plate | Weight | Load Quantity |
|---|---|---|---|---|
| 48x1.8mm | 40x1.8mm | 120x120x4.0mm | 9.83 Kg | 1,600pcs/20GP |
| 48x2.0mm | 40x2.0mm | 120x120x4.0mm | 10.67 Kg | 1,600pcs/20GP |
| 56x1.8mm | 48x1.8mm | 120x120x4.0mm | 12.10 Kg | 1,550pcs/20GP |
| 56x2.0mm | 48x2.0mm | 120x120x4.0mm | 12.72 Kg | 1,500pcs/20GP |
| 60x1.8mm | 48x1.8mm | 120x120x4.0mm | 12.18 Kg | 1,500pcs/20GP |
| 60x2.0mm | 48x2.0mm | 120x120x4.0mm | 13.32 Kg | 1,500pcs/20GP |
| 60x2.5mm | 48x2.5mm | 120x120x5.0mm | 16.26 Kg | 1,500pcs/20GP |
Company Introduction
Comaccord was established in 1998, our factory is located in Pizhou city, which is one of Chinese biggest plywood producing base areas. Our company is one of the leading plywood manufacturers and exporters in China.
As a professional manufacturer and exporter, we offer our customers many series of commodities including film faced plywood, three-ply shuttering panel, H20-beam, plywood, engineered wood flooring, laminate flooring, adjustable prop etc.
Our quality is according to EN-13986: 2004 standard and ISO9001, ISO14000.
Over recent years, we have developed very good business partnership with many overseas enterprises in South America, Portugal, Spain, Ukraine, Italy, Germany, Bulgaria, Chile, Argentina, Peru, Colombia, and other European countries, some to MID-east.
Having accumulated much experience in manufacturing and exporting in these fields, we have gained good reputation for years of best quality, reasonable price, prompt delivery, and excellent service and professional advice at customers′ requests. Presently, we are looking forward to even greater cooperation with overseas customers. We firmly believe to the best of our ability we will meet all your satisfaction.
