Adjustable Acro Jack Steel Props Steel Prop
Steel Prop
1.Length: 2.2-4m 1.7-3.0m etc
2.Type: 60/48mm, 56/48mm, 48/40mm
3.Thickness: 1.6mm-3mm or as required
4.Surface:Power Coated or Pre-Galvanized
Products Description
Painted galvanized adjustable Heavy Duty Shoring Steel Prop Detailed Description:
Q235 Painted galvanized adjustable Heavy Duty Shoring Steel Prop ScaffoldingQ235 Painted galvanized adjustable
Heavy Duty Shoring Steel Prop ScaffoldingQ235 Painted galvanized adjustable Heavy Duty Shoring Steel Prop Scaffolding
adjustable scaffolding steel props are widely used in different supporting areas. Slab formwork and table formwork
with its high loading capacity may meet maximum stability for your site jobs. steel props also can be adjust to different sizes.
Products parameters
| Production Name | Concrete formwork telescopic shoring steel prop ,adjustable acro jack steel props steel prop ,scaffolding steel props, steel props for construction,adjustable steel props, steel shoring prop scalfolding,adjustable post shore,steel pole shore scaffolding formwork |
| Outer Diameter | 48mm--60mm; 40mm--48mm;60--76mm |
| Prop Thickness | 1.5mm--3mm |
| Length | 600mm--5000mm |
| Standard | GB, ANSI, ASME, ASTM, JIS, DIN, BS, EN |
| Material | Q195,Q235, Q345 |
| Package | in pallets or in bundle or in bulk |
| Surface Treatment | dipping painted / galvanized |
| Type | heavy duty or light duty |
| Application | slab or formworking supporting |
| Weight | 4.74kg--30kg |
Kinds of steel post shore can be customized by your request :
Galvanized Steel Prop 63.5mm/76mm Series
Adjustable length:2-3.5 Meters
63.5 inner tube length:2 Meters*thickness 4mm(Q345 Seamless pipe)
76 out tube length:1.5 Meters *thickness 3.25mm
76 thread length: 0.28 Meter 4mm*thickness
Base plate:150*150*6mm( butterfly type)
Pin diameter:18mm(40Cr quenched material)
Nut: 1Kgs type
Weight:24.5kg(theoretical weight)
20' container loading Qty: 1040 PCS
Here is North America Heavy type Post Shore for SGS:
Galvanized Steel Prop 60mm/76mm Series
Adjustable length:2-3.5 Meters
60 inner tube length:2 Meters*thickness 3.5mm(Q235 welding pipe)
76 out tube length:1.5 Meters *thickness 3.25mm
76 thread length: 0.28 Meter 4mm*thickness
Base plate:150*150*6mm( butterfly type)
Pin diameter:18mm(40Cr quenched material)
Nut: 1Kgs type
Weight:22.5kg (theoretical weight)
20' container loading Qty: 1150 PCS

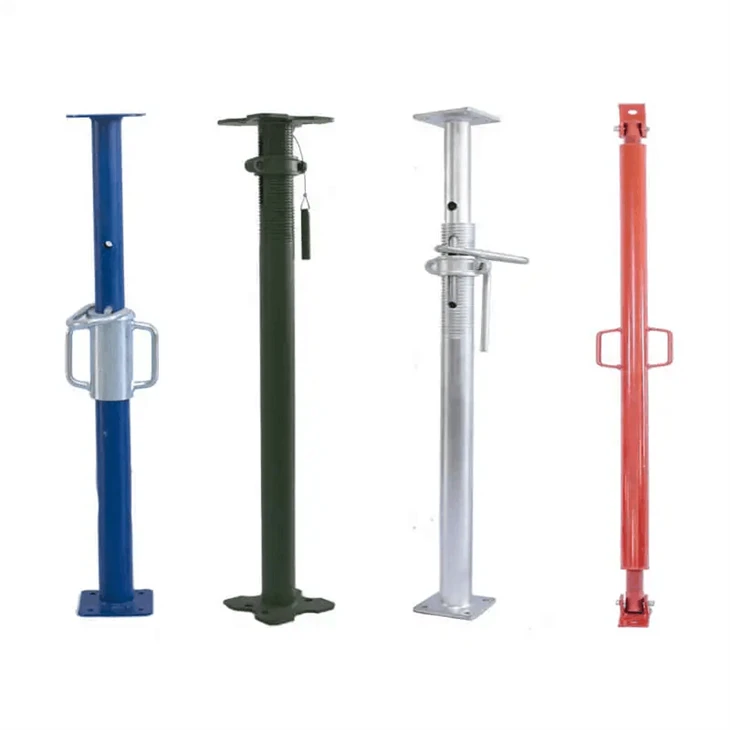

Products picture
Products details
