Playwood Construction Plywood 18mm

Product Information

---

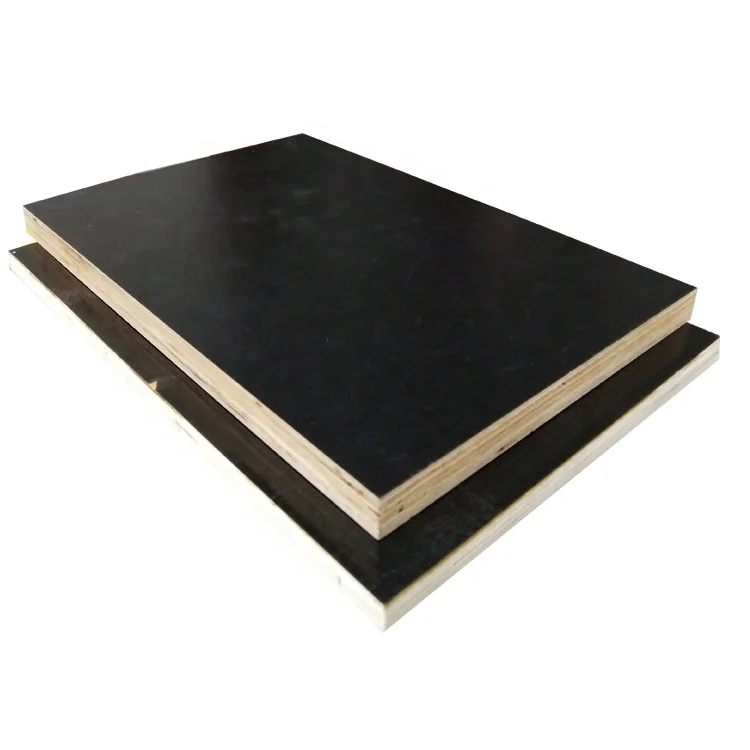

Film faced plywood/formwork plywood/shuttering plywood.

Film faced plywood ,also known as clean water template, is produced according to GB
17656-2008. It is made of rotary cut veneers from Chinese poplars and high-quality waterproof glue, and is processed by high temperature and high pressure.It can be used repeatedly for more than 10 times, without warping and deformation for its good water resistance character.It can be widely used in various concrete engineering such as high-speed railways, subways, and airports, as well as in infrastructure projects such as shear walls, vertical wall panels, bridges, dams and tunnel construction,civil construction and commercial engineering.It could shorten the construction period: firstly, it is easy to demould, only one-seventh time of the steel mold demoulding; secondly, the surface is flat avoiding the secondary plastering process; thirdly,good insulation performance makes winter construction favorable.



Size	1.Small sizes:915x2135mm,1200x1800mm,1525x1525mm 2.Standard sizes:1200X2400mm,1220x2440mm,1250x2500mm 3.Big size:1500x3000mm
Thickness	3,6,9,12,15,16,17,18,19,20,21,25,27,30mm

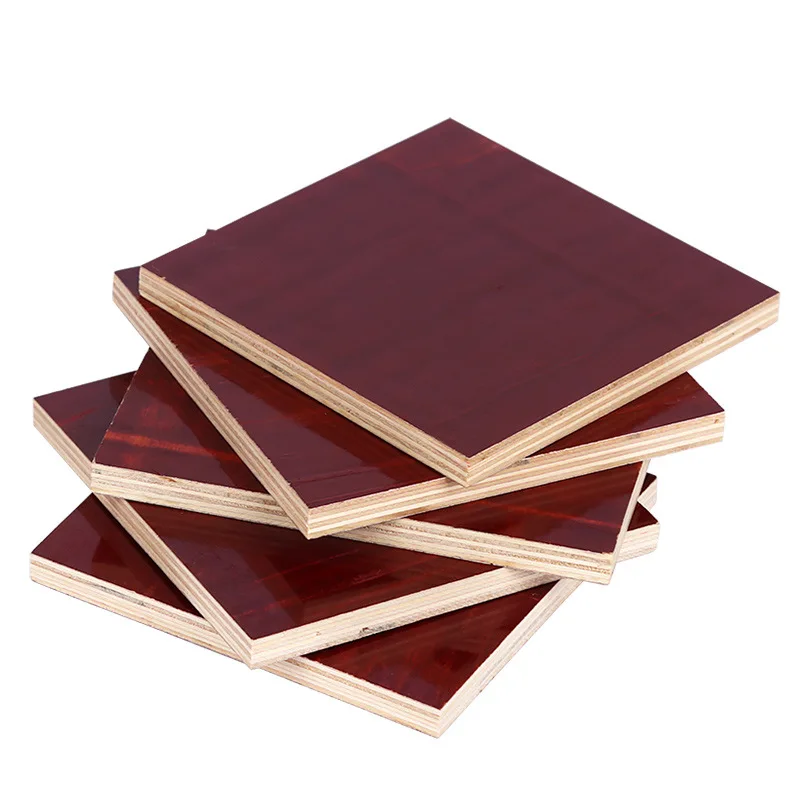

F&B	brown film,Black film,red film,green film and so on
Finish	Smooth,mesh(anti-slip),with or without logo(customized logo by customers)
Glue	PHENOLIC-boiled for 48hours,reused times 15-20/MELAMINE-boiled for 6-8hours,reused times 8-12/MR-boiled for one hour,reused times 6-8,Amount of the glue,take 1.7mm thickness veneer for example,the amount of glue used in other factory is 0.25kg/m2, and our use is 0.33kg/m2,it will ensure the high strength of plywood in application.
Formaldehyde release	E1≤1.5mg/L E2≤5.0mg/L
Hot press	one time hot pressed,two time hot pressed,(difference: two time hot pressed plywood smooth surface;one time hot press,low cost and cheap price.Choose by your market)
Cycle life	6-20 times
Tolerance	+/-0.5mm,+/-0.8mm
Density	poplar:530~500kgs/cbm,hardwood:600~580kgs/cbm
Edges	Four edges will be sealed with water-proof paint(red, green or others)







Packing & Delivery

---



pallets are covered with thin plywood or carton with steel strapping for strength to protect our film faced plywood .





Product Application

---



Film faced plywood can be widely used in various concrete engineering such as high-speed railways, subways, and airport ports, as well as in infrastructure projects such as shear walls, vertical wall panels, bridges, dams and tunnel construction, civil construction and commercial engineering.



Comaccord was established in 1998. As a professional manufacturer and exporter, we offer our customers many series of commodities including Adjustable prop, Scaffolding, film faced plywood, H20-beam, plywood etc.
Our quality is according to EN-13986: 2004 standard and ISO9001, ISO14000.
Over recent years, we have developed very good business partnership with many overseas enterprises in South America, Portugal, Spain, Ukraine, Italy, Germany, Bulgaria and other European countries, some to MID-east.
Having accumulated much experience in manufacturing and exporting in these fields, we have gained good reputation for years of best quality, reasonable price, prompt delivery, and excellent service and professional advice at customers' requests. Presently, we are looking forward to even greater cooperation with overseas customers. We firmly believe to the best of our ability we will meet all your satisfaction.



3. Our Services

1. Your email will be response with 24 hours during the working days.

2. Well-trained & experienced staffs to answer all your asks about plywood.

3.Complete & rapid after-sales service.
